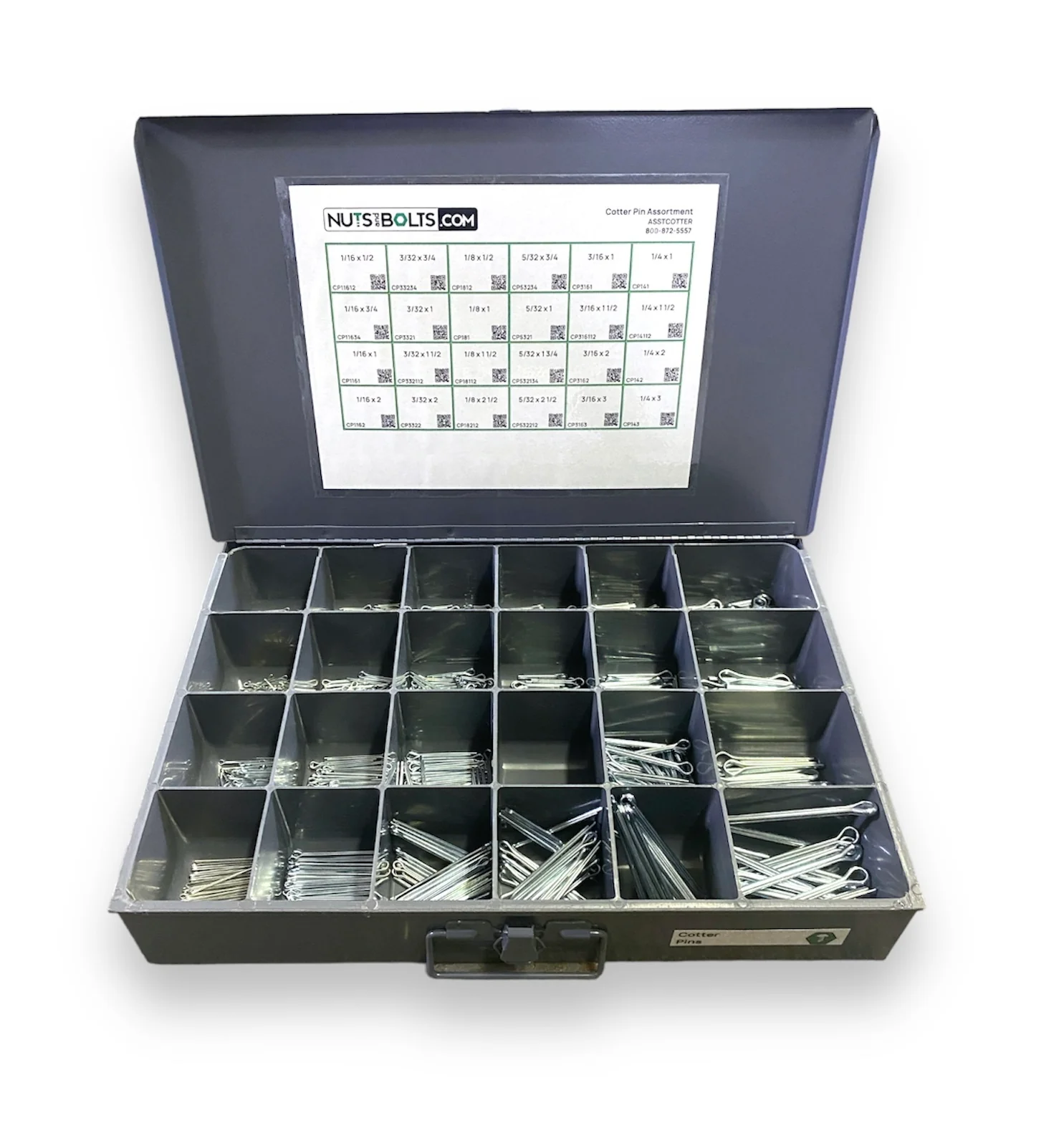

Six diameters, 980 pins, one organized metal drawer — so the right cotter pin is always on hand before it becomes the reason a job stops. This kit covers the full range of standard cotter pin sizes used in agricultural equipment, fleet maintenance, and outdoor power equipment.

What's Included

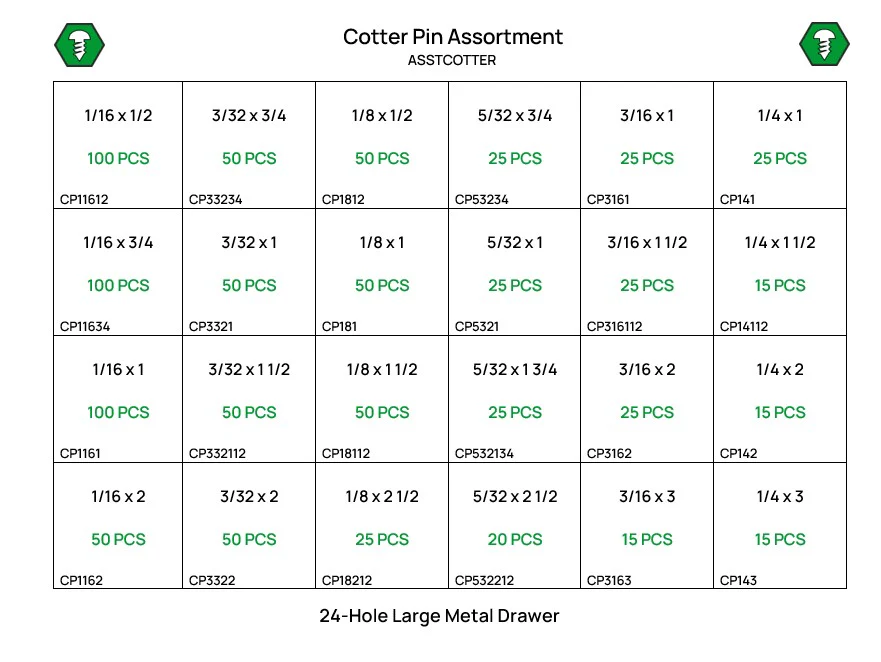

Standard cotter pins in six diameters: 1/16", 3/32", 1/8", 5/32", 3/16", and 1/4"
Multiple lengths per diameter — covers a wide range of clevis, hitch pin, and shaft applications
Heavy-duty labeled metal drawer for long-term shop storage
980 pieces total

Specifications

Standard	ASME B18.8.1
Material	Low carbon steel
Finish	Zinc plated
Diameters	1/16", 3/32", 1/8", 5/32", 3/16", 1/4"
Total pieces	980
Approx. weight	15 lbs
SKU	ASSTCOTTER

Best For

Agricultural equipment shops — tractors, balers, planters, and implements use cotter pins at every hitch and linkage point
Outdoor power equipment dealers — mowers, tillers, chippers, snow blowers, and trimmers
Fleet and trailer maintenance — hitch pins, brake actuator clevis pins, suspension links, and kingpins
Construction and heavy equipment — anywhere a clevis, shaft, or pin connection needs to be locked in place
General repair shops — a complete cotter pin inventory without managing individual part numbers

About Cotter Pins

A cotter pin is a split fastener inserted through a drilled hole in a bolt, shaft, or clevis pin to prevent it from backing out or disengaging. Once bent open after insertion, the pin locks the assembly in place — simple, reliable, and used in nearly every piece of mechanical equipment.

Selecting the wrong diameter is the most common cotter pin problem in a shop. Too small and the pin can slip through or fail under load. Too large and it won't fit the hole. Having all six standard diameters stocked eliminates the guesswork entirely.

Low carbon steel with zinc plating is the standard spec for most general repair environments. For saltwater or heavily corrosive environments, stainless steel cotter pins are the right choice.

Shipping & Ordering

Ships within 1–2 business days from our warehouse
Free shipping on orders $50 and over
Volume pricing available — save up to 20% when ordering 3 or more kits
B2B accounts: Custom pricing and a dedicated rep for agricultural dealers, fleet shops, and equipment maintenance teams — contact us to get started

Essential Fastener Kits

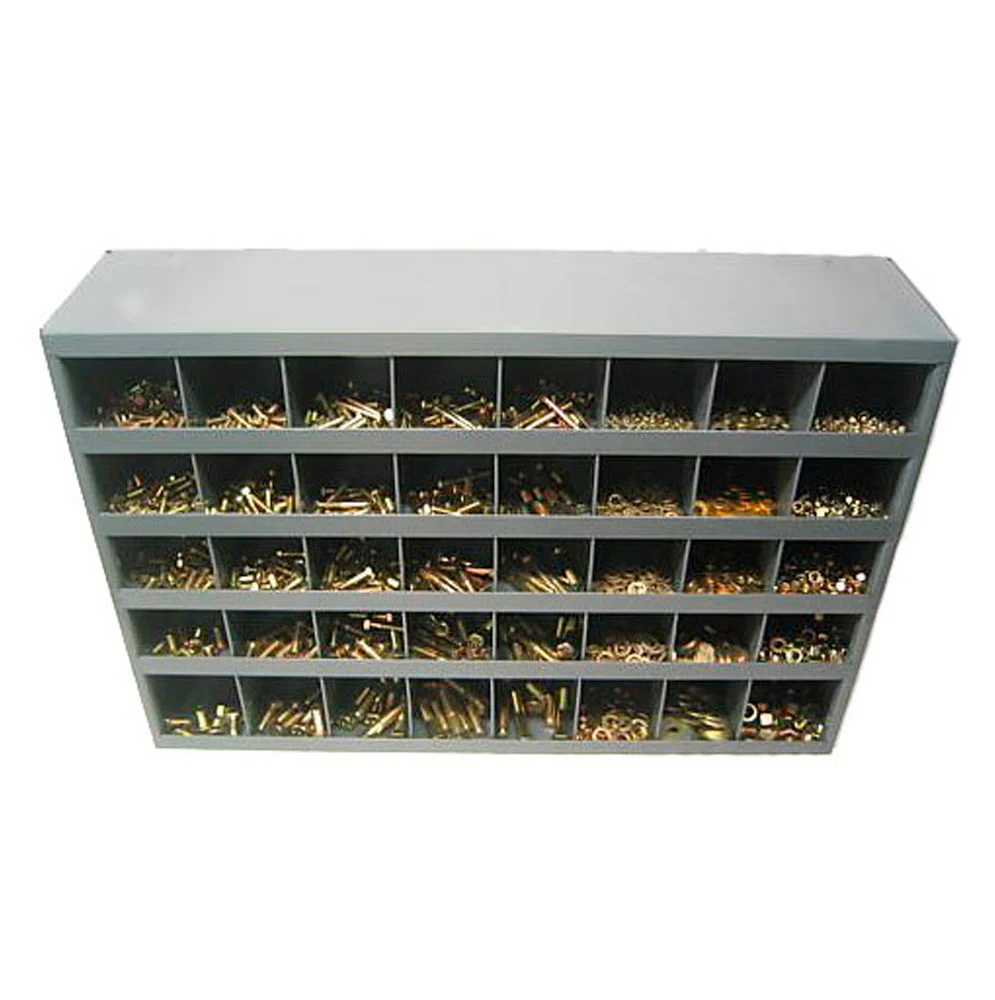

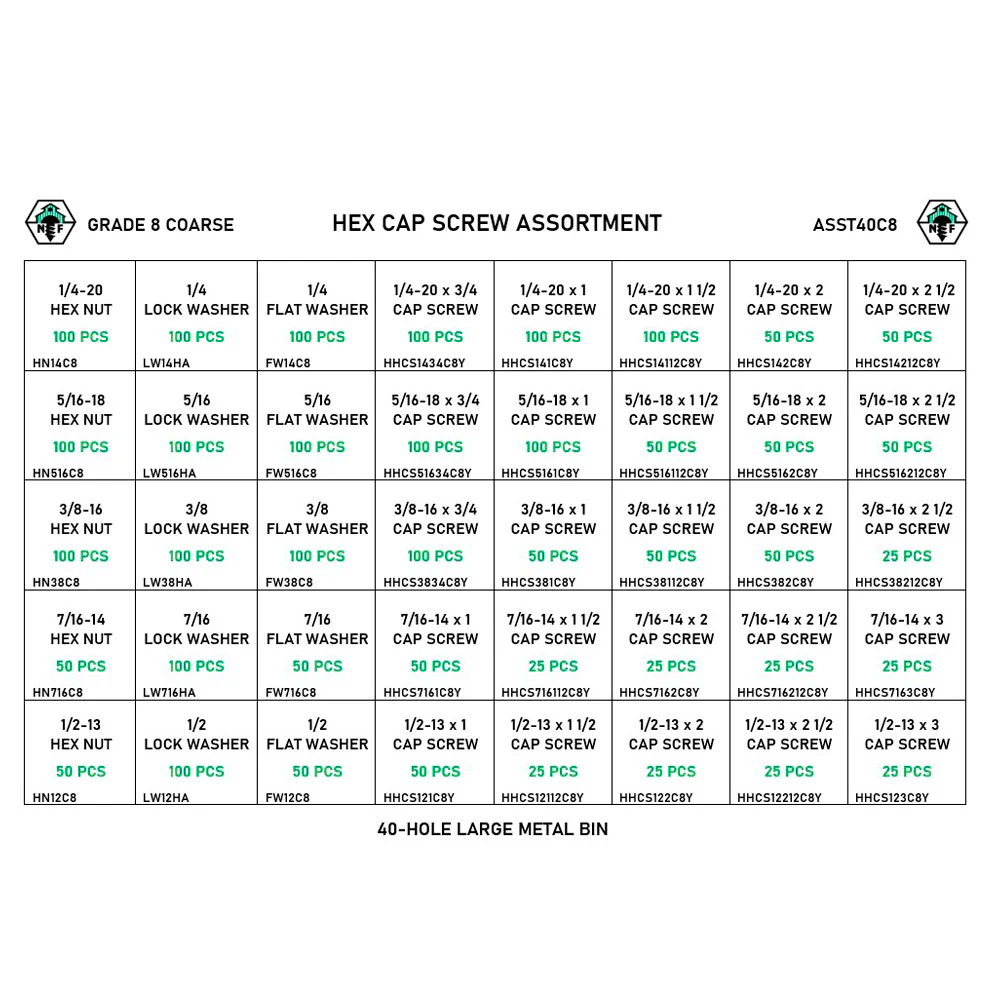

2,625 Piece Grade 8 Hex Head Cap Screw, Nut, and Washer Assortment Starter Kit

980 Piece Cotter Pin Assortment Starter Kit

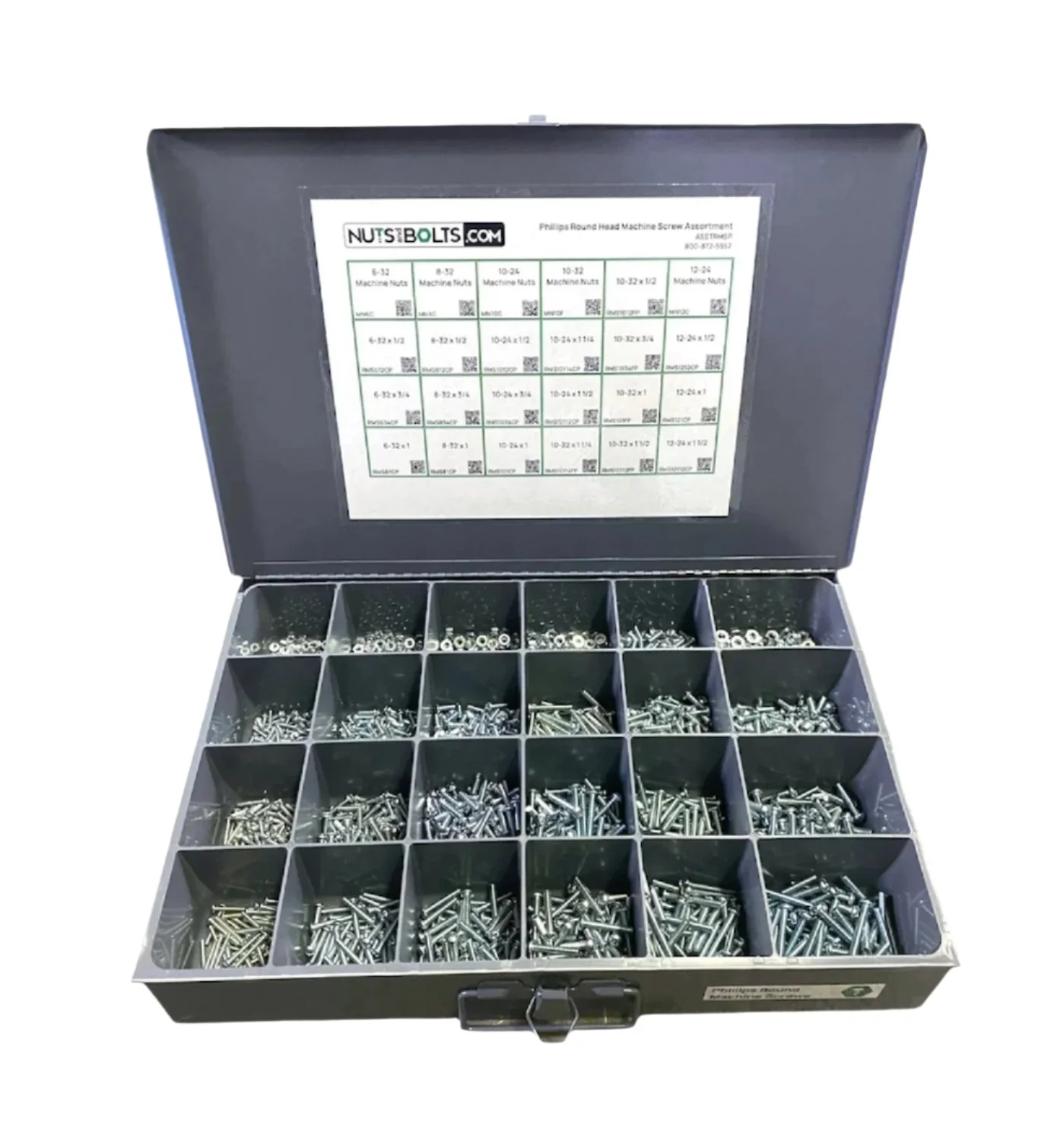

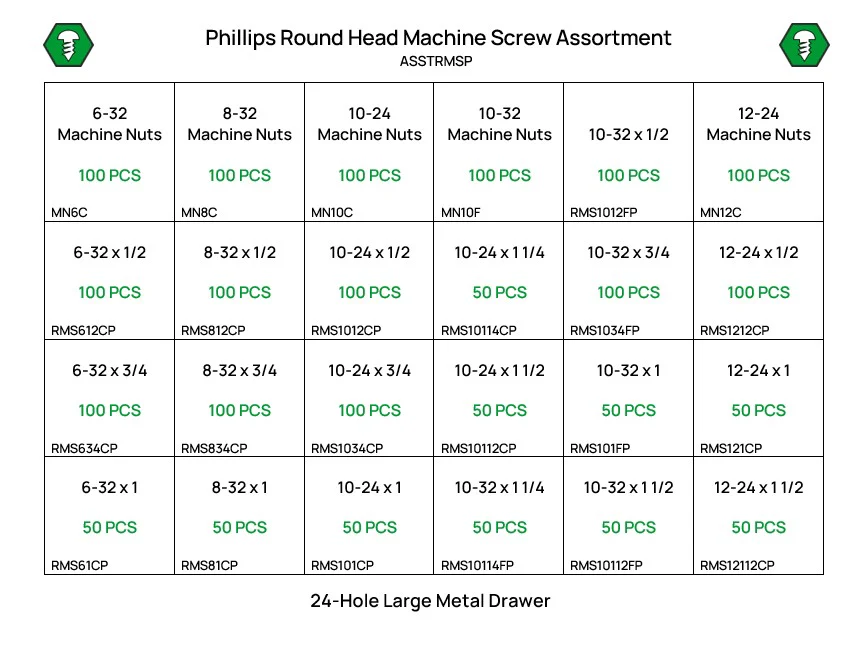

1,900 Piece #6-12 Phillips Round Machine Screw Assortment Starter Kit
